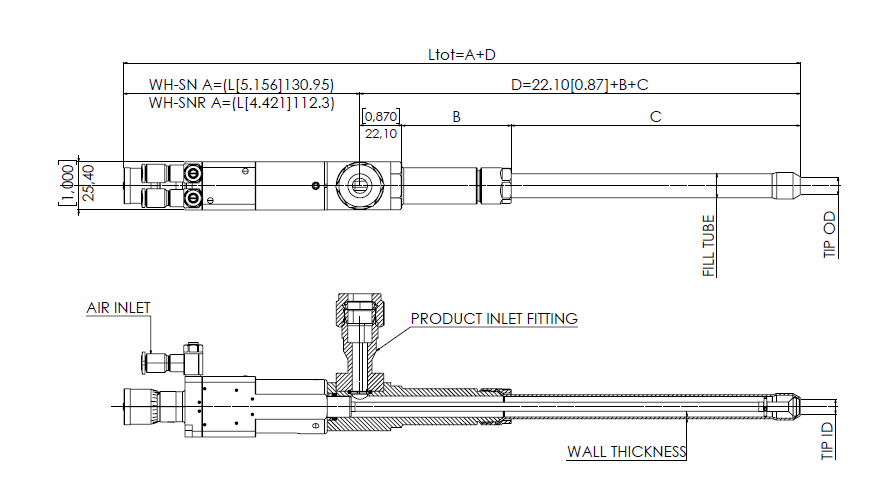

WH-SN / WH-SNR Shutter Nozzle
The Neoceram WH-SN is ideal for efficiently dispensing thick products and delivering liquids without drips. This positive shut-off nozzle seamlessly integrates with Neoceram WH pumps, as well as any existing systems. The WH-SN offers a compact and versatile solution across all industries.
General Specifications
- 316L construction
- Double action pneumatic drive
- Adjustable stroke
- Flow-control valves
- One-piece tube
- Large fitting range available
- Tube tip seal-less sealing
- Standard lengths 3.5“ - 6.5“ - 12.5“
Additional custom lengths range 0.5“ - 44“
(with 0.5“ increments)
Inlet Fittings
We offer various designs depending on machine brand and application. If you don’t find your model, please contact us for various designs depending on machine brand and applications.
Possible Configurations
- For standard and special machines
- Various lengths available according to customer application
- Multiple connections upon requirements
- The General dimensions of the nozzle can be adapted
